How Our Integrated Services Turn Complex Building Projects into Success Stories

3D model of the basement level Broadwalk Shopping Centre

Every renovation, redevelopment or estate upgrade project begins with one crucial requirement – knowing exactly what already exists. From heritage landmarks and university estates to sports venues and shopping centres, every client faces the same challenge: how to capture, understand and communicate the reality of their built environment.

At Platinum 3D Consultants, that challenge is met with precision, innovation, and over two decades of experience. By combining laser scanning, measured building surveys, BIM-ready Revit models, and geo-referenced datasets, the company provides clients with an accurate digital foundation for confident decision-making, collaboration, and long-term management.

The following projects show how these technologies come together to deliver real-world value across very different types of sites.

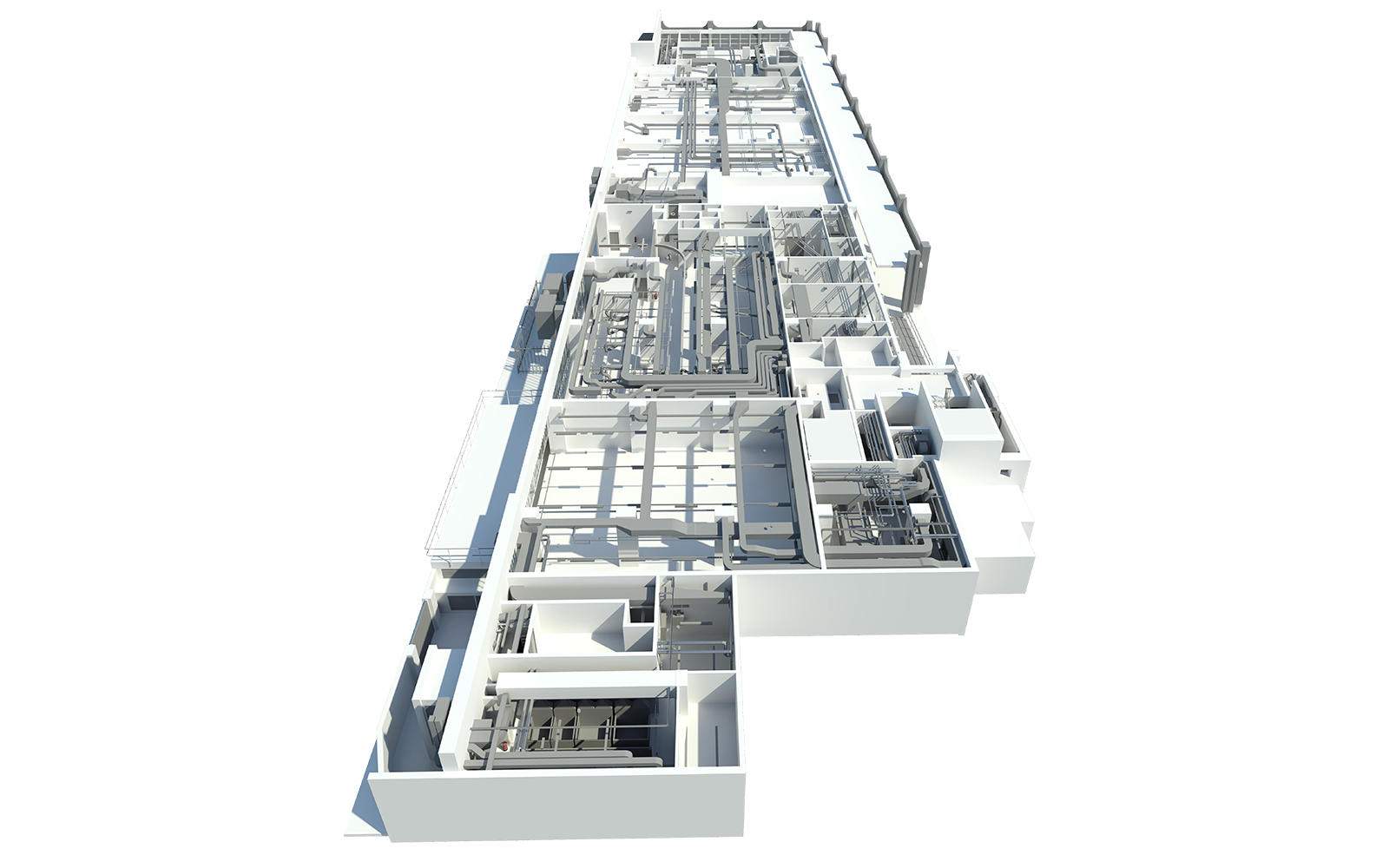

Capturing Complexity at the Natural History Museum

The Natural History Museum in London is not only one of the world’s most recognisable buildings, but also one of the most technically challenging estates to survey. Platinum 3D Consultants carried out a detailed 3D survey and created LOD3 Revit models for multiple areas across the site, including laboratories and plant rooms packed with complex services such as piping, ducting, lighting, switches, and sockets.

By establishing permanent survey control and ensuring every model was geo-referenced within a single coordinate system, Platinum 3D enabled the museum’s teams to link all models into one unified master project. This approach supported the museum’s long-term digital strategy, integrating Building Information Modelling (BIM) as a tool for collaboration, maintenance, and design coordination.

For a client managing a Grade I listed building filled with sensitive scientific infrastructure, that combination of accuracy, accessibility, and digital integration proved essential for sustainable estate management.

Broadwalk Shopping Centre – Informed Redevelopment from the Ground Up

When developers acquired the Broadwalk Shopping Centre in Bristol, they needed a clear understanding of the existing site before any demolition or redevelopment work could begin. Built in the 1970s, the building had complex additions and sub-levels that required comprehensive documentation.

Platinum 3D Consultants provided a measured survey of the entire site, producing 2D plans of the shopping centre, bingo hall, snooker hall, basement and car park. After seeing the level of precision and coverage provided, the client commissioned a 3D Revit model of the basement area — which was to be partially retained in the new design.

Because the entire site had been laser scanned at the start, the additional model could be created directly from existing point cloud data, avoiding the need for any return visits. This demonstrates how accurate 3D scanning not only saves time and cost, but also gives developers the flexibility to make new decisions confidently throughout a project’s life.

Documenting an Icon – London Stadium

Few structures demand the scale of documentation required for the London Stadium in Stratford. Originally built for the 2012 Olympic Games and now home to West Ham United, the multi-use stadium required comprehensive digital documentation for ongoing redevelopment and facility management.

Platinum 3D deployed the latest Leica RTC360, P20 and P40 scanners, completing over 1,500 scans and capturing more than 12 billion data points. The resulting point cloud data was converted into a Leica LGS file, enabling the client to review and interrogate the 3D environment in Jetstream and TruView.

For a structure of this size and complexity, accuracy and data clarity were critical. The laser scanning process allowed every seat, beam, and walkway to be digitally represented — ensuring that future design, maintenance, and safety upgrades could be planned with confidence and minimal disruption.

Adelaide House – Bringing a Listed Landmark into the Digital Age

Adelaide House, next to London Bridge, is a Grade II listed building and one of London’s earliest skyscrapers. Its renovation required preserving the historic exterior while updating the interior for modern occupiers — a balance between conservation and innovation.

Platinum 3D conducted a comprehensive laser scan survey, including the building’s lift shafts, service passages, and its connection with London Bridge. The data was processed into an accurate registered point cloud — the foundation for a Scan to BIM workflow.

The company’s modellers created an LOD3 Revit model of the entire building and LOD2 models of surrounding structures for planning context. Unique features such as Crittall windows were modelled using Platinum 3D’s extensive library of parametric families, while the building’s subtly tapered walls were recreated using custom sloped profiles.

This level of precision supports not only the architects and engineers involved in the restoration, but also planning officers and conservation specialists who rely on verifiable, geometrically correct data to approve changes to heritage assets.

Adelaide house laser scan survey Scan to BIM Revit model

London Metropolitan University – A Digital Estate for Smarter Management

At the London Metropolitan University campus in Islington, Platinum 3D carried out a 3D survey of 17 buildings, generating more than 5,000 scans. The survey was completed largely overnight to minimise disruption to students and staff.

Using this data, the in-house team created detailed LOD3 Revit models of each building. Every model was geo-referenced, allowing the entire estate to be connected into a single digital master model.

Working alongside CBRE and the university’s infrastructure and maintenance teams, the models are now being used to support both design and facilities management (FM). Accurate, centralised data is allowing the university to plan upgrades, coordinate refurbishment projects and manage spaces more efficiently — a practical demonstration of how BIM and laser scanning can transform the long-term performance of large estates.

A Connected Process That Delivers Value from Start to Finish

Across all these projects — from museum collections and listed buildings to stadiums, shopping centres and university estates — one thing is clear: the value of integrated digital surveying lies in its versatility.

Laser scanning provides fast, non-contact accuracy, capturing every surface and feature.
Measured building surveys turn that data into reliable drawings and plans for early design.
BIM-ready Revit models enable collaboration, clash detection, and digital asset management.
Geo-referencing ensures that all information fits seamlessly into a wider estate context.

By offering this full suite of services, Platinum 3D Consultants removes uncertainty, reduces risk, and creates a common digital language for architects, developers, planners, contractors, and facilities managers alike.

Turning Complexity into Clarity

Whether it’s an intricate heritage restoration, a full campus upgrade, or the redevelopment of an urban site, every project benefits from knowing exactly what’s on the ground before work begins.

Platinum 3D Consultants’ integrated approach — combining 3D laser scanning, measured building surveys, and BIM modelling — transforms that knowledge into a reliable digital foundation for success.

If your next project demands clarity, precision, and collaboration from day one, contact Platinum 3D Consultants to discover how expert 3D data capture can make every decision easier, faster, and more accurate.

From Gallery to Generator Room – Why Cultural and Industrial Sites Need 3D Surveys

Cultural institutions like galleries, museums, and public sector buildings are rich in architectural detail and historical value. Industrial and infrastructural environments—such as factories, generator rooms, and utility spaces—present their own unique complexity and safety challenges. Traditional documentation methods often fall short in capturing the nuance and breadth of these environments. At Platinum 3D Consultants, we use measured building surveying with laser scanning, BIM-ready Revit models, and Matterport virtual tours to provide the precision and clarity that cultural and industrial projects demand.

laser scan surveys BIM ready Revit models Royal Gwent Hospital

Why Cultural and Industrial Sites Demand Detail and Accuracy

Heritage buildings are often housed in tight, intricate spaces where access is limited. Similarly, industrial environments can contain hidden structures, mechanical obstacles, or safety-sensitive layouts. You may need to understand internal piping, delicate architectural details, or machinery locations precisely—or risk disruption, damage, or design errors.

Laser scanning captures the full geometry of these environments—including unseen features—without site interference. Our high-density point clouds deliver millimetre-accurate, non-intrusive documentation of fine details, from ornate ceilings to complex ductwork, laser-scanning hidden assets with care and precision.:

Creating BIM-Ready LOD 3 Models for Complex Environments

Raw point cloud data is powerful—but when converted into LOD 3 Revit models, it becomes actionable. Our BIM-ready models translate detailed architectural elements—such as columns, historic decorative features, piping, switch gear, and more—into parametric families that can be analysed, altered, or visualised digitally.

For example, in the Natural History Museum case study, we modelled piping, ducting, lighting, switches, and sockets within laboratories and plant rooms—areas usually fraught with complexity and limited access. These builder-level details matter when planning conservation or upgrading MEP systems.

Parsing Space with Matterport Virtual Tours

Not every environmental change team is fluent in BIM. That’s why we pair our models with Matterport virtual tours. These immersive walkthroughs provide intuitive access to spaces, enabling stakeholders—designers, curators, engineers, and FM teams—to explore areas remotely, tag zones of interest, and visualise physical context before intervention. In high-stakes or restricted zones such as galleries or industrial halls, this visual clarity accelerates alignment and reduces risk.

Benefits Across the Cultural–Industrial Divide

Architects designing retrofit systems—whether installing HVAC in an art gallery or overhauling control rooms in a substation—need accuracy in both design and context. Heritage consultants rely on scan precision to ensure renovations don’t undermine historical fabric. FM teams use BIM data to manage maintenance in heritage or industrial estates accurately. Matterport tours improve stakeholder buy-in by offering a shared, immediate view into traditionally hard-to-reach areas.

Ensuring Safety, Efficiency, and Continuity

Industrial environments demand clarity for safe planning and maintenance. Laser scanning can map out tight corridors and hazardous zones without requiring physical presence, reducing downtime and risk. Combined with BIM, contractors can identify clashes with fixed infrastructure, while FM staff can review maintenance paths in advance. For heritage spaces like galleries, virtual tours allow curatorial and planning staff to explore sensitive sections without disrupting exhibits or visitors.

A Seamless Process from Survey to Model

At Platinum 3D, our process unites scanning, modelling, and virtualisation:

Laser scanning teams capture thorough site data—even in inaccessible or delicate areas—using up-to-date survey tools.
Our in-house Revit modellers transform point clouds into fully structured LOD 3 BIM models.
Matterport tours overlay this technical precision with immersive visuals everyone can navigate.
Clients end up with a fully coordinated digital dataset they can revisit, annotate, or expand at any time.

Case Study Insight: Embedding Detail in Complex Spaces

In the Natural History Museum project, our work in laboratories and plant rooms provided data clarity that supports both conservation teams and future upgrades. In industrial contexts, similar digitisation can guide planning around generators or heritage equipment, maintaining continuity—and safety—during upgrades.

Why These Projects Demands Exceed Ordinary Refurbishment

Typical refurbishment may require basic floor plans and elevation checks. But for cultural venues and industrial infrastructure, even small misalignments can lead to costly errors, heritage damage, or operational downtime. Optical scans paired with BIM deliver precise data—from ornate cornices to control panel arrays. And Matterport tours let stakeholders visualise before entering or modifying these vital spaces.

Talk To Us

Whether preserving the grandeur of a gallery or upgrading the functionality of a generator room, cultural and industrial spaces require detailed, dependable information. At Platinum 3D Consultants, we combine laser scanning, LOD 3 BIM, and Matterport tours to provide clarity, confidence, and safety—bridging design, heritage care, and FM in a single visual-spatial framework.

Ready to digitise your cultural venue or complex infrastructure with absolute accuracy? Contact Platinum 3D Consultants today to discuss how our 3D surveying solutions can support your project from documentation to delivery.

The Value of 3D Data for Multi-Stakeholder Projects

In construction, refurbishment and facilities management, success depends on clarity. When multiple disciplines—from architects and engineers to contractors and FM teams—are working on a single project, visibility is everything. The greater the shared understanding of the existing built environment, the smoother the collaboration. That’s where Platinum 3D Consultants come in. Our survey-grade laser scanning, intelligent BIM models, and interactive Matterport virtual tours provide an aligned digital foundation for every stakeholder. The result? Fewer surprises, better decisions, and far less risk.

From Fragmented Files to a Unified Digital Twin

Traditionally, building projects have been managed using a patchwork of 2D drawings, written specifications and disconnected models. These often vary in scale, accuracy and update status—leading to confusion or costly miscommunication. When multiple teams are working on the same site with their own interpretations of the layout, delays and errors quickly follow.

That’s why more clients are turning to a single source of truth: a precisely aligned digital representation of the site based on reality capture data. At Platinum 3D, we specialise in gathering and transforming this data into usable formats that suit every phase of a project’s lifecycle. Whether through high-resolution laser scanning, scan-to-BIM modelling or interactive virtual tours, we help project teams see the same thing—so they can work together better.

Laser Scanning as the Starting Point

Our process typically begins with a full measured building survey using state-of-the-art laser scanning equipment from industry leaders such as Leica and FARO. Our scanners capture millions of 3D data points across every surface of a structure—interior, exterior, and even hard-to-reach areas like rooflines or basements.

These point clouds form the foundation of a highly accurate dataset, one that is georeferenced and complete down to millimetre detail. By capturing the exact as-built conditions before a project begins, clients avoid guesswork. The benefit? Architects can design based on what’s truly there, not what they hope to find. Engineers can plan infrastructure upgrades without clashing with hidden ducting or ceiling services. And facilities teams can trust that the digital model matches the physical site.

Turning Data Into Action with Revit BIM Models

Once scanned, Platinum 3D’s in-house team of experienced Revit technicians transform the point cloud into detailed LOD2 or LOD3 BIM-ready models. These models are not just visualisations—they’re intelligent tools embedded with parameters, families and data relevant to real-world components. For example, structural elements such as columns or beams are modelled with true dimensions, enabling clash detection and detailed coordination.

For architects, this means they can begin design iterations from a reliable base model. For MEP engineers, the BIM model supports routing and planning without interfering with existing features. For main contractors, having accurate layouts reduces delays on-site, as surprises are minimised. And for FM professionals, the Revit model becomes a long-term asset—providing insight into plant locations, maintenance zones and access pathways.

Matterport Virtual Tours for Visual Clarity

In parallel, we often provide Matterport 360-degree virtual tours of the site. These aren’t just glossy walkthroughs—they’re immersive, tagged environments that bring together the design and operational narrative of a building. Users can ‘walk’ through each room, click on items to reveal data, and share annotated scenes across teams. It’s particularly useful for remote stakeholders, safety briefings, or maintenance contractors who need to understand site conditions without stepping on site.

Virtual tours also play a key role in stakeholder buy-in. Whether it’s a funding board, a university committee, or a senior facilities manager, having an intuitive visual format helps everyone understand spatial relationships, project scope, and proposed interventions.

Coordination Without Friction

The true value of this comprehensive digital toolkit—laser scanning, BIM and virtual tours—is realised when coordination becomes seamless. On multi-stakeholder projects, delays often arise from misinterpretation. A wall isn’t where it was expected. A ceiling service clashes with a new lighting plan. A void turns out to house critical M&E plant.

When every team is working from the same dataset, these issues are identified early. Platinum 3D’s clients routinely use our models in Navisworks, Revit or similar platforms to conduct multi-disciplinary reviews before any physical work begins. The result is better design, smoother procurement, fewer RFIs and reduced rework on site.

Trusted Across Complex and High-Stakes Environments

Our approach has been proven across major projects. For example, we provided LOD3 Revit models and laser scanning services at London Metropolitan University across 17 buildings. The models were used not just by architects and consultants, but also by the university’s FM teams, who integrated the data into long-term maintenance planning.

We’ve also supported complex renovations at sites like Adelaide House near London Bridge, where tight urban constraints and listed façades demanded precise modelling and multi-disciplinary input. Here, our models allowed the design team to coordinate upgrades with minimal disruption to historic elements.

Digital Data That Keeps Giving

One of the most underestimated advantages of 3D data is its long-term value. Once created, it becomes a living asset. Future fit-outs, infrastructure updates or change of use projects can all begin from the same model, saving money and time. For facilities teams, it provides reliable information for lifecycle management—from servicing plant to managing occupancy or energy use.

Platinum 3D: The Partner for Complex Collaboration

At Platinum 3D Consultants, we understand that large-scale construction, refurbishment and management projects don’t just need data—they need clarity, trust and integration. Our services bridge technical and practical needs, ensuring every team, stakeholder and decision-maker can work from the same reality.

If your project demands clear coordination across disciplines, or if you’re tired of fragmented information slowing you down, it’s time to talk to us. With a Platinum 3D survey and model, what you can see, you can solve.

How Measured Surveys and 3D Tech Are Changing the Way We Work With Buildings

In a world where precision, efficiency, and collaboration matter more than ever, the construction and property industries are undergoing a digital transformation. Whether you’re planning a refurbishment, managing a large estate, or preparing for a complex demolition, the old ways of working from paper plans and rough measurements are fast becoming outdated.

Measured building surveys, laser scanning, BIM, and digital walkthroughs are now working in tandem to deliver a clearer picture of the built environment—literally and figuratively. At the centre of this shift are experts like Platinum 3D Consultants, who combine decades of industry experience with cutting-edge technology to provide powerful tools that transform how buildings are understood and managed.

A New Era in Understanding Buildings

It all starts with measured surveys—precision recordings of a building’s size, structure, and spatial relationships. These aren’t just basic sketches or general layouts. Using high-specification laser scanning equipment, Platinum 3D captures millions of data points in minutes, creating incredibly accurate 3D representations of the existing environment.

This laser scan data is then processed into what’s known as a point cloud—a digital mesh of the building’s geometry. From there, this data can be used to generate everything from 2D plans to BIM-ready Revit models and fully immersive virtual tours.

For clients, this process offers a true site-to-screen experience. Within a matter of days, you go from standing on-site to viewing a highly detailed 3D model from your desk—without losing accuracy or critical information along the way.

Why Measured Surveys Matter

For architects, developers, planners, and facilities managers, accurate information is everything. A small miscalculation in a wall thickness or service duct alignment can result in costly design changes, rework, or even compliance issues.

Measured surveys help avoid these pitfalls. By providing verified data about every floor, wall, ceiling, and connection, Platinum 3D ensures that the models and drawings you base your plans on are as close to reality as possible. And because the laser scanning process can capture data in even the most complex or sensitive areas—such as plant rooms, listed façades, or confined basements—you get clarity in places where traditional survey methods struggle.

Bringing BIM Into the Picture

Once the data is captured, Platinum 3D’s in-house team converts it into intelligent 3D models using Building Information Modelling (BIM). These aren’t just visual replicas—they’re data-rich digital twins that contain detailed information about the materials, structure, dimensions, and relationships between different components of the building.

BIM-ready Revit models form a shared reference point for architects, engineers, contractors, and clients. They allow everyone involved in a project to make informed decisions, detect potential clashes, plan works with confidence, and avoid duplication of effort.

For example, in refurbishment projects, a scan to BIM process can show how a proposed new M&E installation will interact with existing structural features, helping teams to spot and resolve issues before work starts. In facility management, BIM models can include metadata about mechanical systems, finishes, and access points—making ongoing maintenance easier and more effective.

The Role of Virtual Tours

While BIM provides technical insight, tools like Matterport bring accessibility and visual clarity. These 3D virtual walkthroughs allow clients, contractors, and stakeholders to ‘visit’ a building remotely, view measurements, tag important elements, and plan activities without needing to be on site.

This is particularly valuable in high-risk or high-traffic environments such as hospitals, industrial plants, or busy retail estates. With a virtual tour of a building or environment, site inductions, safety briefings, and stakeholder reviews can all happen off-site—saving time, reducing disruption, and improving health and safety.

And because Matterport scans can be integrated with BIM and survey data, the result is a holistic digital toolkit that supports better decision-making across the building’s lifecycle.

Laser Scanning Buildings BIM Revit Models Matterport

Practical Applications Across Sectors

This integrated approach to building data isn’t just theoretical—it’s already proving invaluable on live projects across the UK.

Take urban redevelopment: a measured building survey can inform demolition strategies by showing which parts of a structure can be safely retained. In one project at the Broadwalk Shopping Centre in Bristol, Platinum 3D’s initial 2D plans were so precise that when the client later requested a 3D Revit model of the basement, it could be produced immediately from existing scan data—avoiding a return visit and keeping timelines on track.

In heritage restoration, as with Adelaide House near London Bridge, laser scanning captures intricate façade details and asymmetries that manual methods could easily miss. These are then translated into BIM models that balance conservation with modern design needs—allowing teams to restore what matters while confidently upgrading what’s needed.

In hospitals, such as the Royal Gwent in Newport, a phased laser scan and modelling programme allowed architects to plan department refurbishments while facilities teams used the same BIM data to manage ongoing maintenance and compliance.

Why Choose Platinum 3D?

At Platinum 3D Consultants, we don’t just deliver surveys—we provide the complete digital foundation that modern projects depend on. From the initial scan to the final model, every output is crafted in-house by our experienced team using proven, best-in-class technology.

We’ve worked with clients across commercial, heritage, healthcare, industrial, and public sectors—each with their own challenges, priorities, and ambitions. What they all have in common is a need for clarity, consistency, and confidence in the data that drives their decisions.

By combining accurate measurement with intelligent modelling and immersive visualisation, we help our clients reduce risk, save time, improve communication, and deliver better buildings.

Ready to Work Smarter?

If you’re planning a refurbishment, redevelopment, or large-scale maintenance programme and want to start with the right information, get in touch with Platinum 3D Consultants.

From site to screen, we’re here to help you see the full picture—and make it work for you.

The Complete Digital Toolkit: How Measured Surveys, BIM & Virtual Reality Are Revolutionising the Built Environment

Smithfield Market renovation works laser scanning and aerial photogrammetry

The construction, architecture, and property industries are undergoing a digital revolution. Advanced surveying methods, 3D modelling, and virtual reality are transforming how buildings are designed, built, and managed. Technologies such as measured surveys, laser scanning, Building Information Modelling (BIM), and Matterport virtual tours are reshaping the way professionals interact with and understand the built environment.

At Platinum 3D Consultants, we specialise in capturing, modelling, and digitising buildings using the latest reality capture technologies. By integrating these tools, we help architects, engineers, contractors, and property managers work more efficiently, reduce errors, and improve project outcomes. This article explores how these technologies fit together and the value they bring to the industry.

What Are Measured Surveys and Why Are They Essential?

A measured survey is a precise method of collecting data about a building or site. Unlike traditional surveys, which rely on manual measurements, modern measured surveys use laser scanning to capture highly detailed and accurate 3D spatial data. These surveys create a digital representation of an existing structure, which can be used for renovation, redevelopment, and facility management.

Measured surveys are particularly valuable for:

Architects and designers, who require exact dimensions before starting a project.
Contractors, who need precise information to avoid costly mistakes.
Building owners and facility managers, who need accurate records for maintenance and compliance.

Using laser scanners, Platinum 3D Consultants can collect millions of data points per second, creating point clouds that provide an incredibly detailed view of a building’s physical characteristics. These point clouds then form the foundation for BIM models, CAD drawings, and 3D visualisations.

How BIM Takes Measured Survey Data to the Next Level

Building Information Modelling (BIM) is the process of creating intelligent 3D models that contain not just geometry but also metadata about materials, building elements, and performance metrics. BIM allows professionals to collaborate effectively, make data-driven decisions, and improve efficiency at every stage of a building’s lifecycle.

Key Benefits of BIM in Construction and Design:

Improved collaboration – Teams can access and edit the same digital model, ensuring consistency across disciplines.
Fewer errors and rework – BIM’s ability to identify clashes between building elements (e.g., pipes conflicting with structural beams) prevents costly mistakes.
Streamlined project management – With a clear digital record, project managers can track progress and plan efficiently.
Better sustainability and cost control – BIM allows for energy performance analysis, material tracking, and lifecycle cost calculations.

At Platinum 3D Consultants, we create BIM-ready Revit models from our measured building survey data, ensuring accuracy and consistency for architects, engineers, and developers. Whether working on heritage building restoration, commercial developments, or infrastructure projects, BIM provides a solid foundation for smart decision-making.

Matterport Virtual Tours: Bringing Spaces to Life

Matterport virtual tours are transforming the way professionals interact with built environments. By creating immersive 3D models, Matterport allows stakeholders to explore buildings remotely, make informed decisions, and reduce the need for on-site visits.

How Matterport Virtual Tours Add Value:

Remote collaboration – Clients, designers, and contractors can experience a property from anywhere, reducing travel costs and project delays.
Enhanced safety – For high-risk environments (e.g., construction sites or hazardous industrial facilities), virtual site visits minimise unnecessary exposure.
Streamlined planning and communication – Virtual walkthroughs help ensure that all stakeholders have a shared understanding of site conditions before work begins.

By integrating Matterport scans with measured surveys and BIM, Platinum 3D Consultants offers a complete digital toolkit, making site data more accessible, interactive, and actionable.

How These Technologies Fit Together for Maximum Efficiency

When used together, measured surveys, BIM, and Matterport virtual tours create a powerful workflow that streamlines every phase of a project:

Measured Surveys Capture the Reality
- Laser scanning collects highly accurate data on-site.
- Creates 3D point clouds and 2D CAD drawings for further processing.
BIM Converts Data into a Smart Model
- Point cloud data is processed into BIM-ready Revit models.
- Enables clash detection, planning, and collaboration across teams.
Matterport Virtual Tours Provide Remote Access
- Stakeholders can walk through a digital version of the building from anywhere.
- Supports pre-construction planning, training, and maintenance strategies.

Why Choose Platinum 3D Consultants?

At Platinum 3D Consultants, we provide expert measured building surveys, laser scanning, BIM modelling, and Matterport virtual tours. Our team is dedicated to delivering geometrically accurate, high-quality digital models that help our clients make informed decisions, reduce risk, and improve efficiency.

By integrating the latest technology into our workflow, we ensure that your project benefits from precision, accuracy, and innovation at every stage. Whether you’re an architect, developer, contractor, or property manager, we offer solutions tailored to your needs.

Get in Touch Today

If you’re looking to enhance your building design, construction, or facility management process with the latest digital surveying and modelling technology, contact Platinum 3D Consultants today. Our expertise in measured surveys, BIM, and Matterport virtual tours ensures that you get the most accurate, efficient, and innovative solutions available.

📞 Contact us now to discuss your project and see how our complete digital toolkit can transform the way you work!

How Measured Building Surveys Inform the Demolition and Redevelopment Process

Demolition and redevelopment projects are complex undertakings that require meticulous planning to ensure success. From assessing existing conditions to preparing for construction, having accurate and comprehensive building data is crucial. Measured building surveys, powered by cutting-edge laser scanning technology, play a vital role in informing and streamlining these processes.

At Platinum 3D Consultants, we specialise in delivering high-precision measured surveys and creating detailed 2D plans and 3D BIM-ready models. This blog will explore how measured surveys contribute to demolition and redevelopment projects, using the Broadwalk Shopping Centre in Bristol as a real-world example, and explain the value and benefits they bring.

A Case Study: Broadwalk Shopping Centre, Bristol

The Broadwalk Shopping Centre in Bristol, built in the 1970s, was earmarked for demolition and redevelopment following its closure in 2017. The redevelopment plan includes replacing the shopping centre with a mixed-use community hub, incorporating additional housing to address local needs.

Platinum 3D Consultants provided a comprehensive measured building survey of the entire site, including:

The shopping centre.
A snooker hall.
A bingo hall.
Basements.
The car park.

Initially, detailed 2D plans were delivered to the client to assist with demolition planning. Later, a 3D Revit model of the basement and loading bay was requested, as these areas were to be partially retained in the new development. Since the entire site had already been laser scanned, the additional model was created without requiring a return site visit—a prime example of how measured surveys add long-term value.

The Role of Measured Surveys in Demolition and Redevelopment

1. Accurate Documentation of Existing Conditions

Before any demolition begins, understanding the current state of a building or site is essential. Measured surveys provide highly detailed and accurate data about the layout, dimensions, and structural features of the existing environment.

How It Helps:
Accurate documentation ensures that demolition teams are fully informed about what they’re working with, reducing the risk of unexpected issues during demolition.
Platinum 3D’s Expertise:
Our laser scanning technology captures every detail with millimetre precision, producing data-rich outputs such as 2D floor plans, elevations, and sections.

2. Identifying Structural Features for Retention

In redevelopment projects, certain parts of a building or site may need to be retained for heritage, structural, or functional reasons. Measured surveys help identify and document these features with precision.

Broadwalk Example:
The basement and loading bay of the Broadwalk Shopping Centre were to be partially retained. The 3D Revit model created by Platinum 3D ensured that these elements were accurately documented for integration into the new development.
How It Helps:
Ensures seamless integration of retained structures with new designs, reducing delays and errors during redevelopment.

3. Supporting Demolition Planning

Demolition is a risky and complex process. Without accurate data, teams risk damaging structures that are meant to be preserved, or encountering unexpected complications on-site. Measured surveys mitigate these risks by providing detailed and reliable plans.

How It Helps:
- Guides the sequencing of demolition.
- Identifies load-bearing elements and other critical structural components.
- Ensures safety and compliance with regulations.
Platinum 3D’s Contribution:
Our geo-referenced surveys enable precise spatial understanding, ensuring that every detail is accounted for in demolition plans.

4. Enhancing Collaboration Among Stakeholders

Redevelopment projects involve multiple stakeholders, from architects and engineers to contractors and project managers. Measured surveys provide a single, accurate source of truth for all teams.

How It Helps:
- Facilitates better communication and coordination.
- Ensures all parties are working with the same accurate data.
- Reduces the risk of miscommunication and rework.
Platinum 3D’s Deliverables:
Our BIM-ready models allow stakeholders to collaborate effectively, providing a shared platform for design and execution.

5. Future-Proofing the Redevelopment Process

The data collected through laser scanning is not only valuable for demolition but also for the entire redevelopment lifecycle. Detailed surveys and models can be revisited and adapted as project requirements evolve.

Broadwalk Example:
The initial survey data collected by Platinum 3D was later used to create a 3D model of the basement without requiring a return to the site, saving time and resources.
How It Helps:
- Reduces the need for repeat site visits.
- Provides a flexible resource for future planning and maintenance.

Benefits of Using Measured Surveys in Demolition and Redevelopment

Precision and Accuracy:
Laser scanning ensures that all measurements and features are captured with millimetre accuracy, reducing uncertainty.
Time and Cost Efficiency:
Comprehensive data reduces delays and prevents costly mistakes during demolition and redevelopment.
Safety Assurance:
Detailed surveys enable careful planning, minimising risks to workers and surrounding structures during demolition.
Informed Decision-Making:
Stakeholders have access to reliable data, enabling smarter, data-driven decisions throughout the project.
Sustainability:
Retaining and reusing parts of existing structures reduces waste and supports sustainable construction practices.

Why Choose Platinum 3D Consultants?

At Platinum 3D Consultants, we combine advanced technology with industry expertise to deliver tailored solutions for demolition and redevelopment projects. Our services include:

Laser Scanning: Capturing highly accurate data with millimetre precision.
Measured Building Surveys: Delivering 2D plans, elevations, and sections to guide demolition and redevelopment.
Scan to BIM: Creating 3D Revit models that integrate seamlessly into design and construction workflows.
Geo-Referenced Data: Ensuring all plans and models align within a unified coordinate system.

We’ve worked on projects of all sizes, from historic buildings to large commercial developments, always prioritising precision, efficiency, and client satisfaction.

Talk To Us

Measured building surveys are an essential tool for any demolition and redevelopment project, providing the accuracy and insight needed to navigate these complex processes with confidence. By documenting existing conditions, supporting safe demolition, and facilitating collaborative workflows, surveys ensure that projects proceed smoothly and successfully.

If you’re planning a demolition or redevelopment project, contact Platinum 3D Consultants today. With our expertise in laser scanning, measured surveys, and 3D modelling, we’ll provide the precise data you need to achieve your goals efficiently and effectively. Let’s transform your vision into reality!

FAQs About Measured Building Surveys – Popular Questions Answered

When embarking on a project involving renovations, facility management, or new construction, understanding the role and value of Measured Building Surveys can make all the difference. These surveys provide the critical data needed for informed decision-making, accurate designs, and efficient project execution.

At Platinum 3D Consultants, we specialise in measuring and modelling the built environment using state-of-the-art reality capture technology. From creating precise 3D digital models to providing BIM-ready deliverables, we ensure every project is built on a foundation of accuracy.

This blog addresses some of the most frequently asked questions about measured building surveys, helping those with little or no prior knowledge understand their purpose, process, and benefits.

1. What Is a Measured Building Survey?

A Measured Building Survey is a detailed and precise documentation of a building’s physical layout and features. It captures structural elements like walls, floors, windows, and doors, as well as services like plumbing, electrical, and HVAC systems, depending on the level of detail required.

Platinum 3D’s Approach:

We use laser scanning technology to capture millions of data points, generating a highly accurate point cloud. This data is processed to produce floor plans, elevations, sections, or even full 3D BIM-ready models tailored to your needs.

2. Who Needs a Measured Building Survey?

Measured building surveys are invaluable for a wide range of professionals and projects, including:

Architects: To design renovations or extensions with confidence.
Engineers: For structural assessments or retrofitting existing buildings.
Facility Managers: To streamline maintenance and space utilisation.
Property Developers: To ensure accurate area referencing and compliance.
Heritage Preservationists: To document and restore historic buildings.

3. What Technology Is Used for a Measured Building Survey?

The cornerstone of modern measured building surveys is laser scanning technology. Using LiDAR (Light Detection and Ranging), laser scanners emit beams of light to capture precise measurements of surfaces, creating a 3D digital representation of the building.

Why Laser Scanning?

Accuracy: Achieving millimetre precision.
Efficiency: Captures large volumes of data quickly.
Non-Invasive: Ideal for fragile or hard-to-reach structures.

At Platinum 3D Consultants, we combine laser scanning with Scan to BIM technology, enabling us to convert point cloud data into BIM-ready Revit models for seamless integration into design workflows.

4. What Are the Deliverables of a Measured Building Survey?

The outputs of a measured survey vary depending on the client’s requirements and project scope. Common deliverables include:

2D Floor Plans: Accurate layouts showing room dimensions, wall placements, and access points.
Elevations and Sections: Visual representations of a building’s façade or internal structure.
3D Models: BIM-ready models created in software like Revit, which include detailed information for collaborative project planning.
Area Referencing: Calculations adhering to RICS or IPMS standards for commercial property transactions.

5. How Accurate Are Measured Building Surveys?

Modern surveys using laser scanning achieve unparalleled accuracy, typically within ±2–6 millimetres. This level of detail ensures that:

Designs align seamlessly with the as-built environment.
Errors and miscalculations are minimised during construction or renovation.
Collaboration between project teams is based on reliable data.

Platinum 3D’s Commitment:

We deliver surveys with precision and reliability, customised to meet the specific needs of each project, whether it’s a simple floor plan or a complex LOD3 BIM model.

6. How Long Does a Measured Building Survey Take?

The time required depends on factors such as:

The size and complexity of the building.
The level of detail requested (e.g., basic floor plans vs. intricate BIM models).
Site accessibility and conditions.

For instance, a straightforward scan of a small commercial space may take just a few hours on-site, while a detailed survey of a large historic estate could span several days.

At Platinum 3D Consultants, we prioritise efficiency without compromising accuracy, delivering results in a timeline that aligns with your project schedule.

7. Why Choose a Measured Building Survey Over Traditional Methods?

Traditional surveying methods, while effective for basic needs, cannot match the speed, accuracy, or detail provided by modern measured surveys. Benefits of laser scanning include:

Comprehensive Data Capture: No risk of missing critical details.
Digital Integration: Seamless compatibility with modern design software like Revit.
Fewer Re-Visits: All data is captured in one session, reducing disruption.

8. What Are the Benefits of Measured Building Surveys?

Measured surveys bring a wealth of advantages:

Accurate Planning: Ensures designs are based on precise data.
Cost Savings: Reduces errors, rework, and material waste.
Time Efficiency: Speeds up project timelines with reliable data from the outset.
Collaborative Workflows: Provides a shared source of truth for all stakeholders.
Future-Proofing: Supports ongoing maintenance and facility management with digital twins.

9. How Does Platinum 3D Consultants Add Value to Measured Building Surveys?

At Platinum 3D Consultants, we offer a full suite of services to ensure your project is a success:

Laser Scanning: High-accuracy data capture for buildings of any size or complexity.
Scan to BIM: Creation of BIM-ready Revit models tailored to your needs.
Measured Surveys: Deliverables including 2D plans, 3D models, and area referencing.
Geo-Referencing: Ensuring spatial accuracy for large or multi-building sites.

Our commitment to innovation, precision, and client satisfaction makes us a trusted partner for projects across sectors, from commercial developments to heritage preservation.

10. How Can I Commission a Measured Building Survey?

Commissioning a survey with Platinum 3D Consultants is straightforward:

Initial Consultation: We’ll discuss your project goals, requirements, and timeline.
Site Survey: Our team will visit the site to perform a laser scan.
Data Processing: We’ll process the data into the agreed deliverables.
Delivery: Receive your floor plans, 3D models, or BIM files in a format ready for use.

Talk To Platinum 3D Consultants

Whether you’re planning a renovation, managing a facility, or designing a new development, a Measured Building Survey provides the accurate data you need to succeed. With the latest technology and decades of expertise, Platinum 3D Consultants delivers reliable, customised solutions tailored to your project’s needs.

Ready to commission a survey? Get in touch with our expert team today to learn how we can support your project with precision and professionalism. Let’s build smarter, together.

A Real Example of a 3D Survey – The Natural History Museum in London

natural history museum 3D building survey

The Natural History Museum in London is one of the UK’s most iconic cultural institutions. Housing millions of artefacts and attracting visitors from around the globe, this historic building is as much a wonder as the exhibits it contains. Managing a site of this size and complexity requires cutting-edge solutions, which is why the Museum turned to Platinum 3D Consultants for a comprehensive 3D survey and BIM-ready Revit modelling.

This project demonstrates the transformative power of 3D surveys, showcasing how precise data collection and advanced modelling can enhance the management, renovation, and future-proofing of complex heritage sites.

What Was Done?

Platinum 3D Consultants were engaged to survey and model several key locations within the Natural History Museum estate. The project included creating LOD3 models (Level of Detail 3), which captured extensive architectural and mechanical details, including:

Piping and ducting systems.
Lighting, switches, and sockets.
Detailed layouts of laboratories and plant rooms, which posed unique challenges due to their intricate infrastructure.

The models were designed to be geo-referenced, ensuring that all components were aligned within the same coordinate system. This unified approach allows for seamless integration into a single master project, enhancing the Museum’s ability to manage its estate collaboratively and efficiently.

You can watch a video about our work for the Natural History Museum in the Case Studies section of our website here.

How Was It Done?

The project required a meticulous approach, combining state-of-the-art technology with expertise in heritage surveying:

1. Laser Scanning

Using high-precision laser scanning technology, Platinum 3D captured millions of data points per second. This non-invasive method allowed the team to record every visible detail of the Museum’s infrastructure, including its complex mechanical and electrical systems.

2. Point Cloud Data Processing

The captured data was processed into a dense point cloud, providing an exact digital representation of the surveyed areas. This point cloud formed the foundation for creating the 3D models.

3. Revit Modelling

Using Scan to BIM techniques, the point cloud data was converted into BIM-ready Revit models. The models included detailed architectural elements and mechanical systems, adhering to LOD3 standards to meet the Museum’s requirements.

4. Geo-Referencing

All models were geo-referenced, ensuring that every element was positioned accurately within a global coordinate system. This step was crucial for integrating the data into the Museum’s overarching estate management strategy.

Why Was It Done?

The Natural History Museum embarked on this project as part of its broader strategy to prioritise digital transformation and innovation. The 3D survey and Revit models served several critical purposes:

Streamlining Estate Management
The Museum’s vast estate includes multiple buildings and intricate infrastructure. The BIM-ready models provide a single source of truth, enabling the Museum to manage its facilities more efficiently.
Enhancing Collaboration
Geo-referenced models allow multiple stakeholders, including architects, engineers, and facility managers, to collaborate effectively using the same data-rich platform.
Supporting Renovation and Maintenance
Detailed 3D models simplify planning for renovations or upgrades, particularly in complex areas such as laboratories and plant rooms. The accuracy of the models reduces the risk of costly errors or rework.
Preserving Heritage
By documenting the existing infrastructure with precision, the Museum ensures that its historical integrity is preserved while supporting modernisation efforts.
Enabling Future Planning
The models form the basis for ongoing digital initiatives, including further integration of Building Information Modelling (BIM) as a powerful tool for information management.

The Value of This Work

1. Unmatched Accuracy

The laser scanning process captured every detail of the Museum’s complex systems, ensuring that nothing was overlooked. This level of accuracy supports decision-making and prevents costly mistakes during renovations or maintenance.

2. Efficiency and Cost Savings

By providing a digital twin of the Museum’s estate, the 3D models eliminate the need for repeated site visits, saving time and resources. Maintenance teams can access detailed information remotely, streamlining their work.

3. Future-Proofing

The project aligns with the Museum’s vision for digital transformation. The data-rich BIM models provide a foundation for integrating future technologies, such as smart building systems, ensuring the estate remains adaptable and efficient.

4. Improved Collaboration

The geo-referenced models enable seamless collaboration across departments and with external contractors, enhancing project coordination and reducing the risk of miscommunication.

How Platinum 3D Consultants Deliver Value

At Platinum 3D Consultants, we specialise in using the latest reality capture technology to create accurate 3D models for complex projects. Our services include:

Laser Scanning: Capturing precise data with millimetre accuracy.
Measured Building Surveys: Delivering detailed plans, elevations, and sections to suit your needs.
Scan to BIM: Producing BIM-ready Revit models tailored to your project requirements.
Geo-Referencing: Ensuring data consistency and spatial accuracy across projects.

Our experience working on heritage sites, such as the Natural History Museum, demonstrates our ability to balance the demands of modernisation with the need for preservation.

Talk To Platinum 3D Consultants

The Natural History Museum project highlights the immense value of 3D surveys and BIM-ready modelling in managing complex estates. By partnering with Platinum 3D Consultants, the Museum has gained a powerful tool to streamline operations, support collaboration, and future-proof its facilities while preserving its historic character.

If you’re managing a complex estate or planning a significant renovation, contact Platinum 3D Consultants today. Let us show you how our expertise in 3D surveys can transform your project and deliver exceptional results.

Your Questions Answered: FAQs About Building Measurement and 3D Modelling Services

As building measurement and 3D modelling become essential tools in architecture, construction, and facilities management, more clients are curious about how these services work, what they entail, and why they’re invaluable for projects of all types. At Platinum 3D Consultants, we’re dedicated to delivering highly accurate, data-rich models and measured building surveys that provide clients with a solid foundation for their projects.

In this FAQ, we address some of the most common questions we receive about building measurement, 3D modelling, and the services we offer, including laser scanning, Scan to BIM, and measured building surveys.

1. What Is Building Measurement, and Why Is It Important?

Building measurement is the process of capturing accurate dimensions and structural details of a building, including all critical elements like walls, floors, structural beams, and other architectural features. This is essential for many projects, from renovations to facility management, where precise measurements ensure that designs and installations fit seamlessly within the existing space.

At Platinum 3D Consultants, we offer measured building surveys to provide clients with floor plans, elevations, sections, and area referencing, all of which comply with RICS and IPMS standards. Accurate building measurement helps reduce risks, improve project timelines, and prevent costly mistakes.

2. How Does Laser Scanning Work?

Laser scanning, also known as LiDAR (Light Detection and Ranging), is a surveying method that uses laser beams to capture millions of data points of a building’s surfaces in seconds. This creates a highly detailed point cloud—a 3D dataset representing the building’s exact dimensions and features.

Our laser scanners collect up to a million data points per second, allowing us to capture a detailed snapshot of any building, including complex or intricate structures. This data is then processed to create highly accurate digital models. Laser scanning is non-intrusive, which means it can be used in spaces with limited access or in operational buildings without disrupting daily activities.

3. What is a Measured Building Survey?

A measured building survey provides essential details of a building’s layout, dimensions, and spatial relationships, creating a clear and comprehensive record of the building’s structure. This type of survey includes floor plans, elevations, sections, and area referencing, ensuring that all necessary information is available for design, planning, and facility management.

Measured building surveys are an important service we provide at Platinum 3D Consultants, as they form the foundation for many of our clients’ projects. By capturing every detail of a building, we ensure that all stakeholders have the accurate information they need for design, renovation, or restoration work.

4. What is Scan to BIM?

Scan to BIM is the process of using laser-scanned point cloud data to create a BIM-ready model in software such as Revit. This model represents the building’s existing conditions in 3D, providing all structural, architectural, and mechanical information necessary for a wide range of applications.

Our team at Platinum 3D Consultants specialises in Scan to BIM, turning precise survey data into geometrically accurate Revit models. These models allow project teams to collaborate effectively, perform clash detection, and manage every aspect of the building from a single, accurate source.

5. Why Should I Use BIM-Ready Revit Models?

BIM-ready Revit models are extremely valuable because they provide a complete, up-to-date digital representation of a building’s structure, layout, and systems. These models contain rich data about materials, dimensions, and structural elements, all of which are accessible to architects, engineers, and contractors working on the project.

For clients at Platinum 3D Consultants, these models serve as the foundation for collaboration, coordination, and decision-making. BIM-ready Revit models ensure that everyone on the project works from the same, precise data, helping to prevent costly errors and miscommunication.

6. How Accurate is Laser Scanning?

Laser scanning is known for its exceptional accuracy, capturing data points with millimetre precision. This is especially advantageous when dealing with complex or irregular spaces, where traditional measuring methods might fall short. The resulting point cloud data ensures that every detail, from small architectural features to large structural components, is captured with precision.

At Platinum 3D Consultants, we use the latest laser scanning technology to provide our clients with the highest possible accuracy. This precision translates into reliable models and surveys that clients can depend on at every stage of their project.

7. Can Laser Scanning Be Used for Older or Historic Buildings?

Absolutely. Laser scanning is particularly beneficial for historic or listed buildings due to its non-intrusive nature and its ability to capture intricate details. Older buildings often have unique architectural features, complex layouts, and materials that require careful documentation. Laser scanning allows us to survey these structures without disturbing their fabric or altering any historic elements.

Our team has extensive experience working on heritage sites, using laser scanning to create detailed digital models that can support restoration efforts, structural analysis, and long-term preservation.

8. What Are the Benefits of Using Geo-Referencing in a Building Model?

Geo-referencing assigns real-world coordinates to a digital model, aligning it within a common coordinate system. This is especially useful for large projects or buildings with multiple sections, as it ensures that each part of the model is positioned correctly within the wider environment.

At Platinum 3D Consultants, we use geo-referencing to make sure that all our models align seamlessly. This means that different teams can work on the same building or even neighbouring structures while maintaining spatial accuracy and consistency across the project.

9. How Long Does It Take to Complete a Survey and Model?

The duration of a project depends on several factors, including the size and complexity of the building and the level of detail required. Laser scanning itself can often be completed in a matter of hours for smaller buildings or within days for larger or complex sites. However, post-processing, such as cleaning up point cloud data and creating a Revit model, can take additional time.

Our team at Platinum 3D Consultants works closely with each client to provide realistic timelines and ensure we deliver accurate models that meet the project’s needs without unnecessary delays.

10. How Can I Use a 3D Model for Future Facility Management?

3D models created through laser scanning and BIM can be invaluable for facility management. By providing a detailed and accurate digital twin of the building, these models allow facility managers to plan maintenance, track assets, and organise space usage more effectively.

For example, a facility manager can use the BIM model to locate utilities, identify the position of structural elements, or manage room occupancy without needing repeated on-site visits. This level of digital access saves time, enhances accuracy, and supports informed decision-making over the building’s lifecycle.

11. How Can Platinum 3D Consultants Help with My Project?

At Platinum 3D Consultants, we provide a full suite of building measurement and 3D modelling services to suit any project, from large commercial renovations to small bespoke restorations. Our services include:

Laser Scanning: We capture precise data of the building environment using the latest laser scanning technology.
Measured Building Surveys: Detailed surveys that provide clients with essential documentation for floor plans, elevations, and sections.
Scan to BIM: Converting point cloud data into BIM-ready Revit models for design, analysis, and collaboration.
Geo-Referencing: Ensuring models are correctly aligned within a coordinate system for spatial accuracy.

Our team brings years of experience and a commitment to excellence, helping clients achieve accurate, reliable, and detailed models that serve as a foundation for successful projects. Whether you’re planning a new build, renovation, or facility management, we have the tools and expertise to support your goals.

Talk To Platinum 3D Consultants

Understanding the ins and outs of building measurement and 3D modelling can be a challenge, but it’s also crucial for making informed decisions in any construction, renovation, or maintenance project. We hope this FAQ has clarified some of the key aspects of our services and how they can benefit your project.

If you have more questions or are ready to get started on your next project, reach out to Platinum 3D Consultants. Our team is here to provide the expertise and technology needed to make your vision a reality, from precise measurements to comprehensive digital models.

Overcoming the Challenges of Surveying Large, Historic, or Remote Buildings with Modern Technology

Surveying buildings accurately has always posed challenges, especially when dealing with large, older buildings or those in remote locations. Traditional surveying methods, while valuable, often fall short of capturing the detail and precision required for renovation, restoration, or efficient facility management. However, advances in surveying and modelling technology have transformed how these complex environments are measured and documented.

At Platinum 3D Consultants, we specialise in overcoming these challenges, using a suite of modern services—from laser scanning and measured building surveys to BIM-ready Revit modelling and Scan to BIM technology—to deliver highly accurate, detailed, and actionable digital models for a wide range of projects.

The Unique Challenges of Surveying Large, Older, or Remote Buildings

1. Structural Complexity

Older buildings, particularly historic or listed properties, often include intricate architectural features, non-standard materials, and structural elements that have changed over time. Gothic cathedrals, Victorian museums, and stately homes, for example, might have complex facades, vaulted ceilings, and uneven floors, all of which are difficult to capture accurately with traditional methods.

2. Wear and Alterations Over Time

Buildings that have been used for decades (or even centuries) typically undergo renovations, repairs, and adaptations. These changes, sometimes undocumented, can make it difficult to determine the original structure and layout. Understanding and documenting these modifications is essential for restoration work, modern upgrades, or even risk assessment.

3. Access Limitations

Remote buildings, such as rural estates or offshore facilities, present unique access challenges. Surveyors may face restrictions due to location, weather, or physical constraints, making it difficult to capture the building in its entirety. Safety is also a consideration in precarious or hard-to-reach areas, like roofs or plant rooms in older buildings.

4. Data Volume and Accuracy Requirements

Larger buildings require substantial amounts of data to create a comprehensive and geometrically accurate model. Collecting this data manually is time-consuming and often inconsistent, especially when aiming for millimetre-level accuracy.

How Modern Surveying Technologies Overcome These Challenges

At Platinum 3D Consultants, we use the latest technologies to overcome these challenges, combining laser scanning, BIM-ready Revit modelling, and in-depth measured building surveys to create precise and practical models of any building, regardless of its size, age, or location.

1. Laser Scanning: Capturing Every Detail

Laser scanning, also known as LiDAR (Light Detection and Ranging), is a revolutionary tool in surveying large and intricate buildings. By emitting laser beams and measuring their return time, laser scanners capture point clouds—dense datasets that represent the exact dimensions and geometry of the building. This technology is particularly suited to older buildings where every detail, from decorative cornices to structural beams, needs to be documented.

Our laser scanners can collect up to a million data points per second, which allows us to capture even the most complex spaces in a fraction of the time it would take with traditional methods. The resulting point cloud forms the foundation of a highly accurate, 3D digital representation of the building.

Advantages of Laser Scanning:

Precision: Captures every visible element of the building with millimetre accuracy, ensuring no feature is missed.
Efficiency: Reduces the need for multiple site visits, capturing comprehensive data in a single pass.
Safety: Allows surveyors to capture hard-to-reach or hazardous areas, such as high ceilings or roof spaces, from a safe distance.

2. Measured Building Surveys: Comprehensive Documentation

A measured building survey provides essential details of a building’s layout, structural elements, and overall condition. At Platinum 3D Consultants, we conduct detailed measured surveys to produce floor plans, elevations, sections, and area referencing, adhering to RICS and IPMS standards. This is particularly valuable for large or complex buildings, where multiple stakeholders may need to refer to accurate, standardised measurements.

Measured building surveys complement laser scanning by ensuring that all relevant building elements are documented in an accessible format. These surveys are essential for understanding the building’s structure and layout, which can then be used to guide renovations, facility management, or risk assessments.

Advantages of Measured Building Surveys:

Standardisation: All measurements adhere to RICS and IPMS standards, ensuring consistency and accuracy.
Usability: Provides clients with clearly documented building information that is easy to reference and integrate into project planning.
Versatility: Suitable for both structural assessment and interior planning, offering comprehensive spatial understanding.

3. Scan to BIM: Transforming Data into Actionable Models

Our Scan to BIM service bridges the gap between raw survey data and practical application. After completing a laser scan, we use point cloud data to create BIM-ready Revit models, capturing all relevant details and structural components. BIM (Building Information Modelling) enables us to generate a digital twin of the building, which can be used for design, analysis, or long-term maintenance planning.

Our Revit models can include additional layers of detail, from piping and ductwork to lighting and electrical systems. By incorporating this information, we produce a model that is ready for collaborative design, project management, and even clash detection. This level of detail is invaluable for older buildings, where unanticipated structural complications or utilities can disrupt renovations.

Advantages of Scan to BIM:

Accuracy: Transforms point cloud data into geometrically correct Revit models, ensuring consistency across project stages.
Collaborative Utility: BIM-ready models allow for collaboration among architects, engineers, and facility managers, all working from the same accurate dataset.
Flexibility: Supports future renovations, upgrades, or facility management, making it a versatile tool for ongoing building management.

4. Geo-Referencing: A Unified Coordinate System

For larger buildings, especially those with multiple wings or annexes, geo-referencing all models to a unified coordinate system is essential. At Platinum 3D Consultants, we use geo-referencing to ensure all aspects of the building are aligned within a single spatial framework. This is especially beneficial for large or complex estates, where different parts of the building need to be integrated into a cohesive master model.

Advantages of Geo-Referencing:

Alignment: Ensures that each element within the model is positioned accurately, allowing for seamless integration.
Efficiency: Supports multi-team collaboration by maintaining spatial consistency across different departments.
Enhanced Planning: Enables project teams to work on a single model, reducing discrepancies and streamlining workflows.

The Benefits of Combining These Technologies

By integrating these services—laser scanning, measured building surveys, Scan to BIM, and geo-referencing—Platinum 3D Consultants provide clients with a comprehensive, practical digital model that addresses the unique challenges of large, historic, or remote buildings.

1. Enhanced Accuracy and Detail: With laser scanning and precise measurement techniques, our models capture every nuance of the building’s structure, including fine details and complex architectural features.

2. Improved Collaboration and Communication: BIM-ready models allow project stakeholders, from architects to engineers, to work from the same data-rich model. This unified approach reduces miscommunication, enhances project coordination, and minimises costly errors.

3. Future-Proof Documentation: The BIM-ready Revit models we create are more than just models—they are digital twins, built to support future renovations, restorations, or even facility management, ensuring the building’s longevity.

Bringing Historic and Complex Buildings into the Digital Age

Surveying large, historic, or remote buildings accurately requires a sophisticated approach. At Platinum 3D Consultants, we use the latest technologies to meet the unique challenges these buildings present, ensuring that each model is precise, actionable, and tailored to the client’s needs. By combining laser scanning, measured surveys, and BIM-ready modelling, we provide clients with a robust foundation for their projects, enhancing efficiency, accuracy, and long-term management.

If you have a project involving a large, complex, or remote building, get in touch with Platinum 3D Consultants to learn more about our comprehensive surveying and modelling services. Let us help you bring your building into the digital age, supporting its future with accuracy and innovation.
